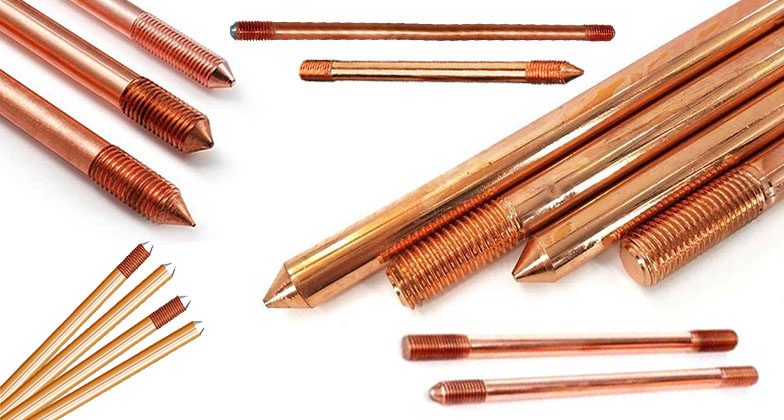

Earth rods, also known as grounding rods or earth bars, play a crucial role in electrical safety and system protection. These devices provide numerous benefits, including safeguarding humans from electric shocks, protecting low-voltage installations from overvoltage, and creating a path for dissipating static discharge and fault currents directly into the ground. They come in all shapes and sizes and can be made from various materials including copper (see copper rods).
Uninterrupted Grounding Benefits
Uninterrupted grounding systems offer significant advantages for electrical safety and equipment protection. By providing a continuous low-resistance path to the earth, these systems effectively dissipate fault currents and excess charges, reducing the risk of electrical shocks and equipment damage.
This constant connection helps maintain stable voltage levels within electrical systems, preventing imbalances that could lead to malfunctions or unstable operations. In critical environments like data centers, uninterrupted grounding acts as a shield against power surges, minimizing the risk of data loss and expensive downtime. Additionally, by extending the lifespan of valuable electrical assets and reducing the need for repairs and replacements, effective grounding systems contribute to substantial cost savings for businesses.
Protection from Electrical Surges
Surge Protective Devices (SPDs) are essential components in safeguarding electrical installations and sensitive electronic equipment from transient overvoltages. These devices work by limiting overvoltages and diverting surge currents to earth, protecting against both atmospheric and switching-induced surges.
There are three main types of SPDs:
- Type 1 for protection against direct lightning strikes
- Type 2 for general low-voltage installations
- Type 3 for protecting specific sensitive loads
SPDs are typically installed within consumer units or at the point where services enter a building, providing a crucial line of defense against electrical damage. By implementing a comprehensive surge protection strategy, businesses and homeowners can significantly reduce the risk of equipment failure, data loss, and costly downtime caused by power surges.
Enhancing Grounding System Efficiency
Enhancing grounding system efficiency is crucial for optimal electrical safety and performance. One effective method is adding bentonite clay to the soil surrounding ground rods. Bentonite has excellent water retention properties and can significantly reduce soil resistivity, improving the overall grounding resistance.
Other techniques include:
- Increasing rod thickness and length
- Using multiple interconnected rods
- Treating the soil with conductive materials
Chemical soil treatments using substances like magnesium sulfate or copper sulfate can also lower resistivity, though these may require periodic reapplication. For challenging soil conditions, specialized conductive concrete products offer long-lasting solutions with resistances as low as 1 ohm in 250 ohm-cm soil. Proper design and implementation of these methods can greatly enhance the efficiency and reliability of grounding systems, ensuring better protection against electrical faults and lightning strikes.
Reducing Electromagnetic Interference
Reducing electromagnetic interference (EMI) is crucial for ensuring the proper functioning and reliability of electronic devices and systems. There are several effective methods to mitigate EMI:
- Shielding: This involves using materials that block or reduce EMI.
- EMI shielded cables: Cables with a conductive layer to reduce EMI effects on transmitted signals.
- EMI coatings: Conductive coatings applied to surfaces to create an EMI shield.
- EMI shielding gaskets: Conductive gaskets that form an EMI shield between surfaces.
- EMI shielding mesh: Wire screens made of conductive materials providing effective shielding.
- Filtering: Blocks conducted noise that travels along power cables or signal lines, particularly effective for reducing EMI that enters through power supplies.
- Grounding: Proper grounding diverts unwanted electrical interference safely, working alongside shielding to reduce EMI.
- Absorption: EMI absorbers, using magnetically or dielectrically lossy materials, act like sponges for EMI.
- Cable management: Proper routing and separation of cables to reduce EMI.
- Component placement: Careful placement in circuit board design can significantly reduce EMI.
- High-quality electronics: Using reliable electronics that have been tested for EMI resistance.
- Compliance with standards: Adhering to EMC regulations ensures that products do not cause harmful EMI.
By implementing these techniques, manufacturers and users can significantly reduce the impact of EMI on electronic devices and systems, ensuring better performance, reliability, and safety.
Improving Lightning Strike Safety
Lightning protection systems are crucial for safeguarding buildings, equipment, and people from the devastating effects of lightning strikes. To improve lightning strike safety, several key components and strategies should be implemented:
- Air Terminals: Also known as lightning rods, these intercept lightning strikes and should be installed at the highest points of a structure.
- Down Conductors: Heavy-gauge cables that provide a low-resistance path from the air terminals to the ground.
- Grounding System: Essential for dissipating the enormous electrical charge from a lightning strike safely into the earth.
- Ground Rods: Copper-clad steel rods driven into the ground.
- Grounding Plates: Copper plates buried in the ground, effective in areas with shallow soil.
- Interconnected Grounding: Ensures all grounding components are unified.
- Surge Protection Devices (SPDs): Protect electrical equipment from voltage spikes caused by lightning.
- Equipotential Bonding: Connects all metallic components of a structure to the lightning protection system.
- Regular Inspections and Maintenance: Lightning protection systems should be inspected annually and after any known lightning strikes.
- Risk Assessment: Determines the level of protection needed based on building height, location, and occupancy.
- Compliance with Standards: Ensures the lightning protection system meets relevant standards.
- Surge Arrestors on Two-Wire Paths: For systems with two-wire paths, such as irrigation systems.
- Proper Grounding Techniques: Use straight lines for grounding circuits, and ensure low resistance to ground.
- Safe Zones: Create lightning-safe zones within structures where people can take shelter during storms.
- Education and Awareness: Educate building occupants about lightning safety procedures.
By implementing these measures, the risk of damage and injury from lightning strikes can be significantly reduced, providing a safer environment for both people and property.
Conclusion
Earthing rods, or grounding rods, are essential components for ensuring electrical safety and system protection. They offer numerous benefits, including shielding humans from electric shocks, protecting installations from overvoltage, and providing a direct path for dissipating static discharge and fault currents. By maintaining uninterrupted grounding systems, the stability of electrical systems is enhanced, reducing risks of malfunctions, power surges, and costly downtime. Moreover, advancements in grounding efficiency, such as using bentonite clay and specialized conductive materials, further improve the reliability of these systems.
Protection against electrical surges is bolstered by Surge Protective Devices (SPDs), which play a critical role in defending against transient overvoltages. In conjunction with enhanced grounding systems, SPDs ensure that sensitive electronic equipment is safeguarded from potentially damaging surges.
Effective grounding also mitigates electromagnetic interference (EMI), crucial for the reliability of electronic devices. Techniques such as shielding, filtering, and proper grounding practices contribute to minimizing EMI, ensuring the optimal performance of electrical systems.
Additionally, improving lightning strike safety is vital for protecting buildings and equipment. Implementing comprehensive lightning protection systems, including air terminals, down conductors, and grounding systems, ensures that lightning energy is safely dissipated, reducing the risk of damage and injury.
Overall, the integration of advanced earthing and grounding techniques is fundamental to maintaining electrical safety, protecting valuable assets, and ensuring the smooth operation of modern electrical systems.
